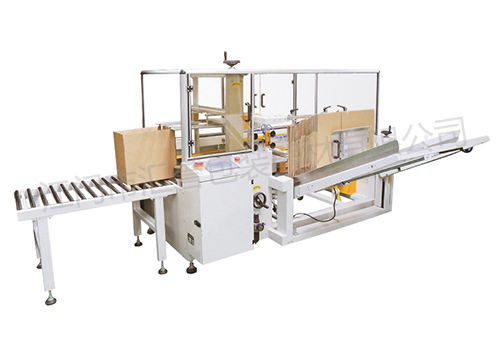

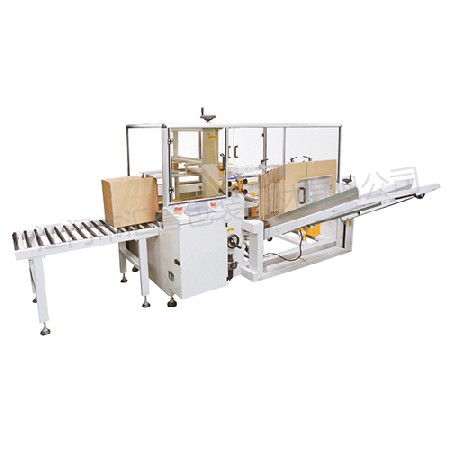

Hy-40 automatic carton forming and sealing machine
2020-10-12 1078
Product features:
Adopt international advanced technology, and choose imported parts, electrical components and pneumatic components;
The paper board can be replenished at any time without shutdown;
It is suitable for the same carton size packaging at the same time. If the carton size needs to be changed, it can be adjusted manually, and the time required is 1-2 minutes;
Reasonable design, synchronous suction molding, folding bottom and back cover forming at one time;
It has the advantages of light volume, precise and durable performance, no vibration during operation, stable operation, long service life and high efficiency;
Transparent plexiglass protective cover is installed to automatically stop the door opening to avoid operation accidents;
It can be operated on a single machine or with automatic packaging line.
| Main technical parameters | ||
| Machine model | HY-40HEighteen | HY-40 |
| Unpacking capacity | EighteenCase / Min | 12Case / Min |
| Temporary storage of cartons | 100pcs(1000mm) | 100pcs(1000mm) |
| Carton Size | L:200-400mmW:150-360mmH:100-350mm | L:250-450mmW:150-400mmH:100-400mm |
| Using electricity | 220V200W | 220V200W |
| Necessary air pressure | 6kg/cA kind of | 6kg/cA kind of |
| Air consumption | 450NL/Min | 450NL/Min |
| Machine size | L2400*W2050*H1450mm | L2000*W1900*H1450mm |
| Mechanical weight | 450kg | 450kg |
| Tape size | 48mm,60mm,75mm(minimum size cannot exist at the same time) | 48mm,60mm,75mm(minimum size cannot exist at the same time) |
-
10-08
What are the advantages of Jiangmen packaging equipment
Automatic packaging machine equipment is easy to preserve the quality of products and transport, by people's love and recognition. The automation level of oso is constantly improving in the manufacturing industry, and its application scope is expanding. Automatic operation in packaging machinery industry is changing the action method of packaging process and the processing method of packaging containers and materials. The automatic control packaging system can greatly improve the production effi
-
10-08
How to adjust the cutter of Jiangmen packing equipment
1) the adjustment knife seat of end seal and cutter has been carefully adjusted and strictly checked before delivery. Under normal circumstances, there is no need to adjust it. If it is necessary to adjust the knife seat, first use two pieces of white paper with a carbon paper in the center to investigate the indentation pattern. If the indentation is uniform and the lines are clear, the cutter seat is in the correct position and does not need to be adjusted. Otherwise, it is necessary to adjust
