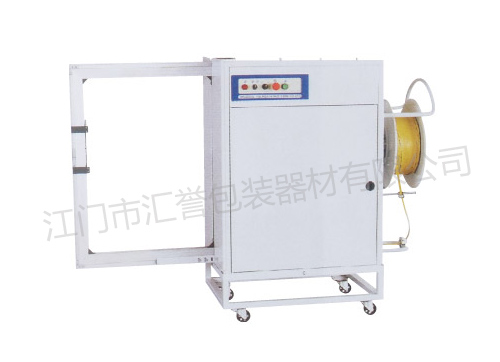

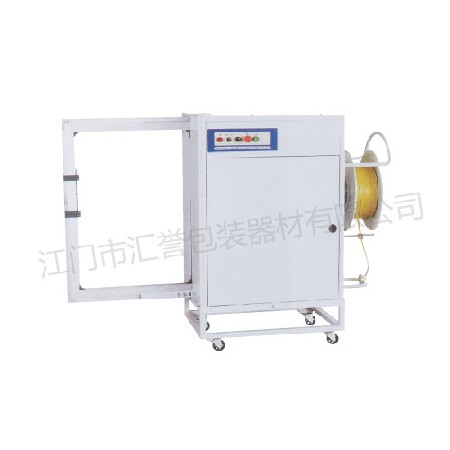

Hy-104a automatic strapping machine
2020-10-12 562
Suitable for special wide packing
Work Rate 3P, 380V、50HZ、750W、5A (1P、 220V、50/60HZ、490W、7A)
Packing speedLess than 2.5 s / Channel
Table height 750Mm
Frame sizeW1100Mm * h600mm (can be customized according to customer needs)
Binding form Parallel 1-multi-channel, the mode is inching, manual, ball switch, foot switch
Applicable strap Thick (0.55-1.2)Mm * width (9-15)mm （It can be customized according to actual needs）
Electric equipment configuration LG "PLC" control and method“"Te", "Omron", "zik"
Machine weight 310kg (gross weight) / 280kg (net weight)
-
10-08
What are the advantages of Jiangmen packaging equipment
Automatic packaging machine equipment is easy to preserve the quality of products and transport, by people's love and recognition. The automation level of oso is constantly improving in the manufacturing industry, and its application scope is expanding. Automatic operation in packaging machinery industry is changing the action method of packaging process and the processing method of packaging containers and materials. The automatic control packaging system can greatly improve the production effi
-
10-08
How to adjust the cutter of Jiangmen packing equipment
1) the adjustment knife seat of end seal and cutter has been carefully adjusted and strictly checked before delivery. Under normal circumstances, there is no need to adjust it. If it is necessary to adjust the knife seat, first use two pieces of white paper with a carbon paper in the center to investigate the indentation pattern. If the indentation is uniform and the lines are clear, the cutter seat is in the correct position and does not need to be adjusted. Otherwise, it is necessary to adjust
