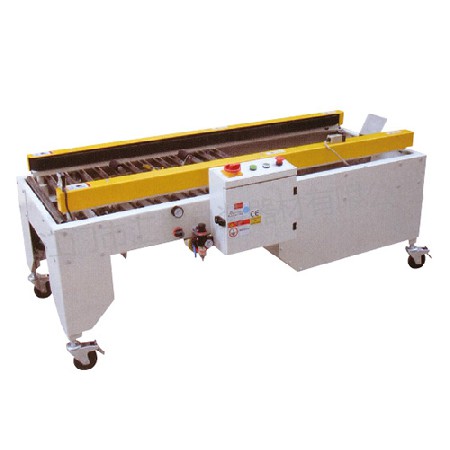

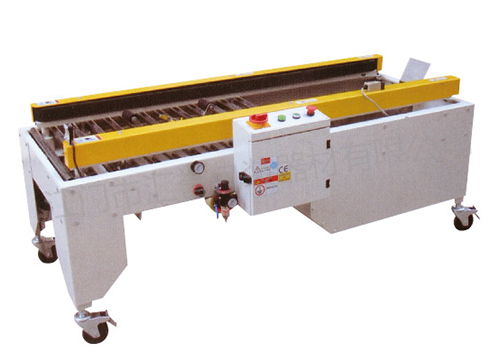

Hy-40a automatic folding and sealing machine
2020-10-12 739
Product features:
※It adopts international advanced technology and adopts imported parts and electrical components.
※According to the size of paper box, automatic clamping, suitable for multiple specifications at the same time.
※Automatic bottom folding, back cover with the same amount, convenient, fast and strong applicability.
※It can be operated on a single machine or with automatic packaging line.
| Main technical parameters | |
| Machine model | HY-40A |
| Packing speed | 8box/minute |
| Maximum package size | L500*W400*H600mm |
| Minimum package size | L200*W150*H100mm |
| Power supply | 220/380V50HZ |
| Power consumption | 200W |
| air source | 6KG |
| Applicable tape | W48mm,60mm,75mm |
| Machine size | L1780*W850*H800mm |
| Machine weight | 250KG |
-
10-08
What are the advantages of Jiangmen packaging equipment
Automatic packaging machine equipment is easy to preserve the quality of products and transport, by people's love and recognition. The automation level of oso is constantly improving in the manufacturing industry, and its application scope is expanding. Automatic operation in packaging machinery industry is changing the action method of packaging process and the processing method of packaging containers and materials. The automatic control packaging system can greatly improve the production effi
-
10-08
How to adjust the cutter of Jiangmen packing equipment
1) the adjustment knife seat of end seal and cutter has been carefully adjusted and strictly checked before delivery. Under normal circumstances, there is no need to adjust it. If it is necessary to adjust the knife seat, first use two pieces of white paper with a carbon paper in the center to investigate the indentation pattern. If the indentation is uniform and the lines are clear, the cutter seat is in the correct position and does not need to be adjusted. Otherwise, it is necessary to adjust
