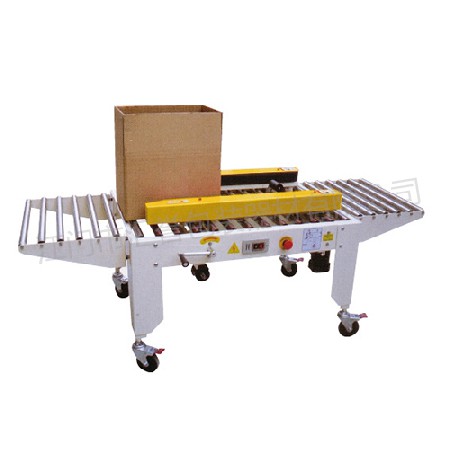

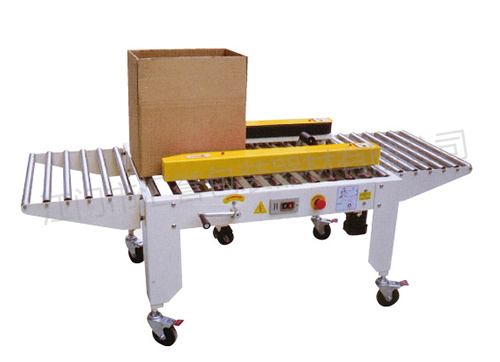

Hy-50w carton back sealing machine
2020-10-12 732
Product features:
※It adopts international advanced technology and adopts imported parts and electrical components.
※Adjust the width and height manually according to the carton size.
※The belt drive on both sides and the bottom sealing box are economical, fast and stable.
※Equipped with blade protection device to avoid accidental stabbing during operation.
※It can be operated on a single machine or with automatic packaging line.
| Main technical parameters | |
| Machine model | HY-50W |
| Packing speed | 1-20m/min |
| Maximum package size | L∞*W500*H800mm |
| Minimum package size | L150*W150*H50mm |
| Power supply | 220/380V50HZ |
| Power consumption | 240W |
| Use the power supply | |
| Applicable tape | W48mm,60mm,75mm |
| Machine size | L1020*W850*H650mm |
| Machine weight | 250KG |
-
